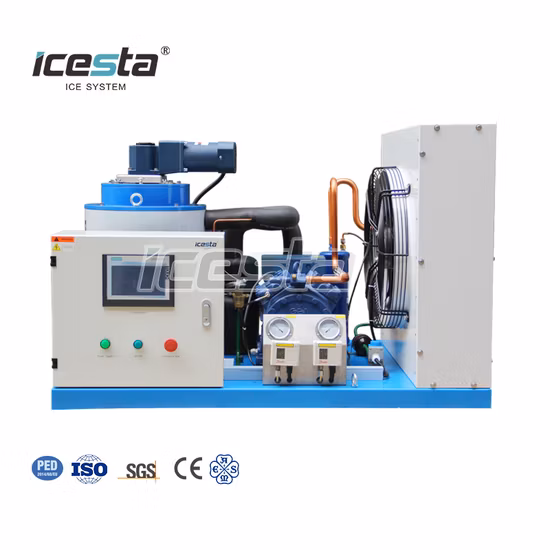

Icesta 300kg 500kg 1000kg 1ton Easy Control High Reliable Commercial Ice Flake Machine

Basic Info.

Model NO.	IF03T-R4A, IF05T-R4A, IF1T-R4A
Machine Size	Medium
Ice Temperature	-5℃~-10℃
Ice Shape	Flake Ice
Application Fields	Aquatic Fishery
Certification	RoHS, UR, ISO, CE, CCC
Condition	New
Usage	Food Processing,Aquatic Fishery,Supermarket Fresh
Ice Cutting Time	Only 1 Minute Running
Storing Capacity	300kg/500kg/1 Ton
Material	Stainless Steel 304/316
Transport Package	Container
Specification	40 GP
Trademark	ICESTA
Origin	Shenzhen China
HS Code	8418
Production Capacity	1800 Sets/Year

Product Description

Product Introduction
Icesta commercial flake ice machine for sale compared with similar products on the market, it has incomparable
outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Brother Ice System summarizes the defects of past products, and continuously improves them. The specifications of Icesta commercial flake ice machine for sale can be customized according to your needs.
Icesta small series of flake ice machine is ranging from 300kg to 10ton per 24hours, with option of with ice bin or no ice bin.
Special customized ice machine also acceptable, for details please contact us.

Icesta 300kg 500kg 1000kg 1ton Easy Control High Reliable Commercial Ice Flake Machine

Technical Parameters
*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply:3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional.
* The ice thickness:1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).

Model	IF0.3T-R4A	IF0.5T-R4A	IF1T-R4A
Ice production	0.3t/24h	0.5t/24hrs	1t/24hrs
Cooling capacity	1.89kw	3.275kw	5.677kw
Evaporation temperature	-20°C	-20°C	-20°C
Condensing temperature	40°C	40°C	40°C
Input total power	2.042kw	2.378kw	4.193kw
Compressor power	1.69kw	2.006kw	3.431kw
Pump power	0.002kw	0.002kw	0.002kw
Reducer power	0.19kw	0.18kw	0.18kw
Unit size	800700600mm	1050700790mm	1050700800mm
Weight	120kg	140kg	170kg

Show Details
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

Icesta 300kg 500kg 1000kg 1ton Easy Control High Reliable Commercial Ice Flake Machine

Drawing Display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production, over 20 technicians provide life time service.

Icesta 300kg 500kg 1000kg 1ton Easy Control High Reliable Commercial Ice Flake Machine

Advantage
Advantages of ICESTA flake ice machine
The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.
ICE FLAKER Generator (evaporator)
*Prominent Heat treatment to avoid any SRINKAGE*TOP welding testing technics with X-RAY--Never leak

Icesta 300kg 500kg 1000kg 1ton Easy Control High Reliable Commercial Ice Flake Machine

Application Industry
More and more cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equipment.
Auxiliary equipment
Optimal industrialapplication: Ice packingComponents:1.Buffer Storage Bin (ranging from 500KG to 2000KG)2.Built-in delivery screw3.Dual control system (Manual and foot pedal) Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.Engineering Case
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.Picture Display
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful,These pictures is just for references, if you need details, please contact us.Product Hot Sale
Why choose us
ICESTA
20 years dedication in ice making technology to create excellence.
Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, waterchillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etcExperiences & History: 20-Years Team focus on innovative solution in Ice & Cooling technology.16-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation: * TOP 3 of China industrial ice machine Brand with strong capability of R&D* 20000 sq.m. Factory* ISO 9001 , CE, PED, ASME (U.S ) Certificates etcTechnology & Management capability:* 80+ patents Certificates* High Technology enterprise CertificateServices & Global Net:* Export to 80+ countries* Local service in 50+ countries with networks all over the world.* 1-2 years warranty covers each component.
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What's the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
